New Marine Mobile Observation Platform
2024/07/13

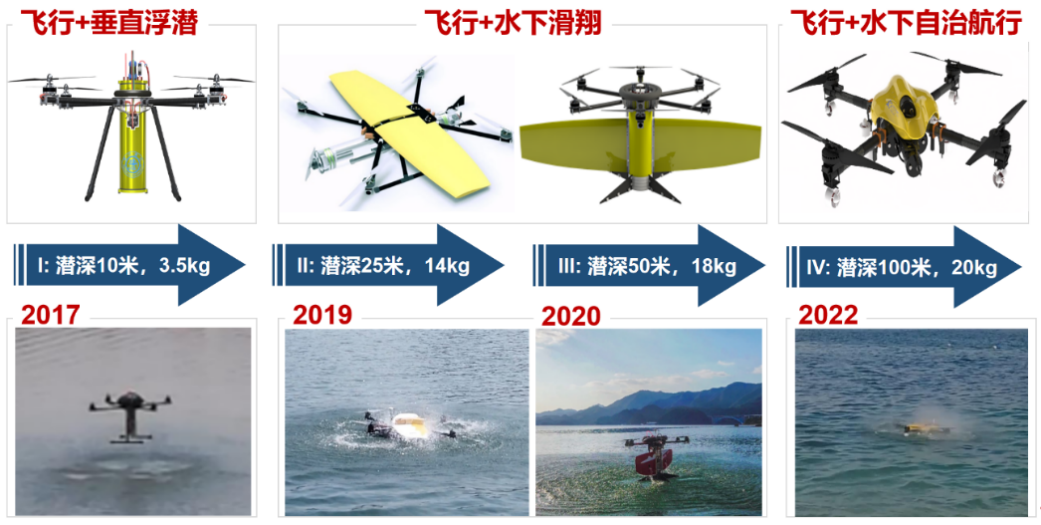

The "Nezha" series of Air-Surface-Underwater cross-domain unmanned vehicles have significant application prospects in marine environmental element observation, identification, cross-domain communication relay, and emergency search and rescue. The latest "Nezha IV" developed in 2022, completed the full-process test of air-surface-underwater cross-domain navigation in a real marine environment, successfully achieving multiple cross-domain movements under sea state 2, with a maximum diving depth of 100 meters and an effective payload of 7kg.


Aiming at the fact that the single motion mode of traditional underwater platforms cannot meet the needs of comprehensive marine observation, this new type of marine mobile observation platform has been developed by integrating the working modes of Argo, Glider and AUV, enabling it to perform long-term large/medium-scale navigation, and autonomous fine-scale observation, thus achieving multi-scale, diverse, and continuous marine observation. By integrating submersible control technology, the development of a new marine sediment mobile sampling and seabed adaptive sampling platform was carried out. In particular, for parameters that cannot be accurately obtained or are perturbed during the design, manufacturing, operation, and practical application of new carriers, a model-free adaptive robust controller was designed to simultaneously address the negative control effects caused by the time-delay characteristics of actuators during high-order differentiation.



Representative supporting materials (including papers, patents, scientific research awards, etc.)

No.

Title

Type

Year

Journal/Authors

1

Design, fabrication, and characterization of a multimodal hybrid aerial underwater vehicle

Paper

2021

Ocean Engineering

Zeng Zheng/Lian Lian

2

Toward a gliding hybrid aerial underwater vehicle: Design, fabrication, and experiments

Paper

2022

 Journal of Field Robotics

Zeng Zheng

3

Energy optimal depth control for multimodal underwater vehicles with a high accuracy buoyancy actuated system

Paper

2023

Ocean Engineering

Cao Junjun

4

Adaptive sliding mode controller combined with pseudo-inverse-based thruster allocator design for ROV with variable coefficients

Paper

2023

Ocean Engineering

Yao Baoheng

5

Fixed-wing sea-air amphibious aircraft and control method

US Patent

2022

US11530036B2

Zeng Zheng
